Tg20 Tripod (timber)
The timber Tripod tree guard has a different look and feel to the standard all metal version and is useful when matching in with other timber items of street furniture. It features stainless steel hoops attached to FSC Iroko hardwood legs stiffened through the middle with a shank of stainless steel.
They come with a stainless steel ground frame ready for resin bound gravel (or similar) infill or our Mesh tree grille. There are Internal brackets for tree ties and guards can be adjusted for verticality. Price is £550 including a 1.2m square stainless steel ground frame.
Material Stainless steel 304 grade, grained finish, FSC Iroko timber
Weight Approx. 30kg and 50kg for ground frame.

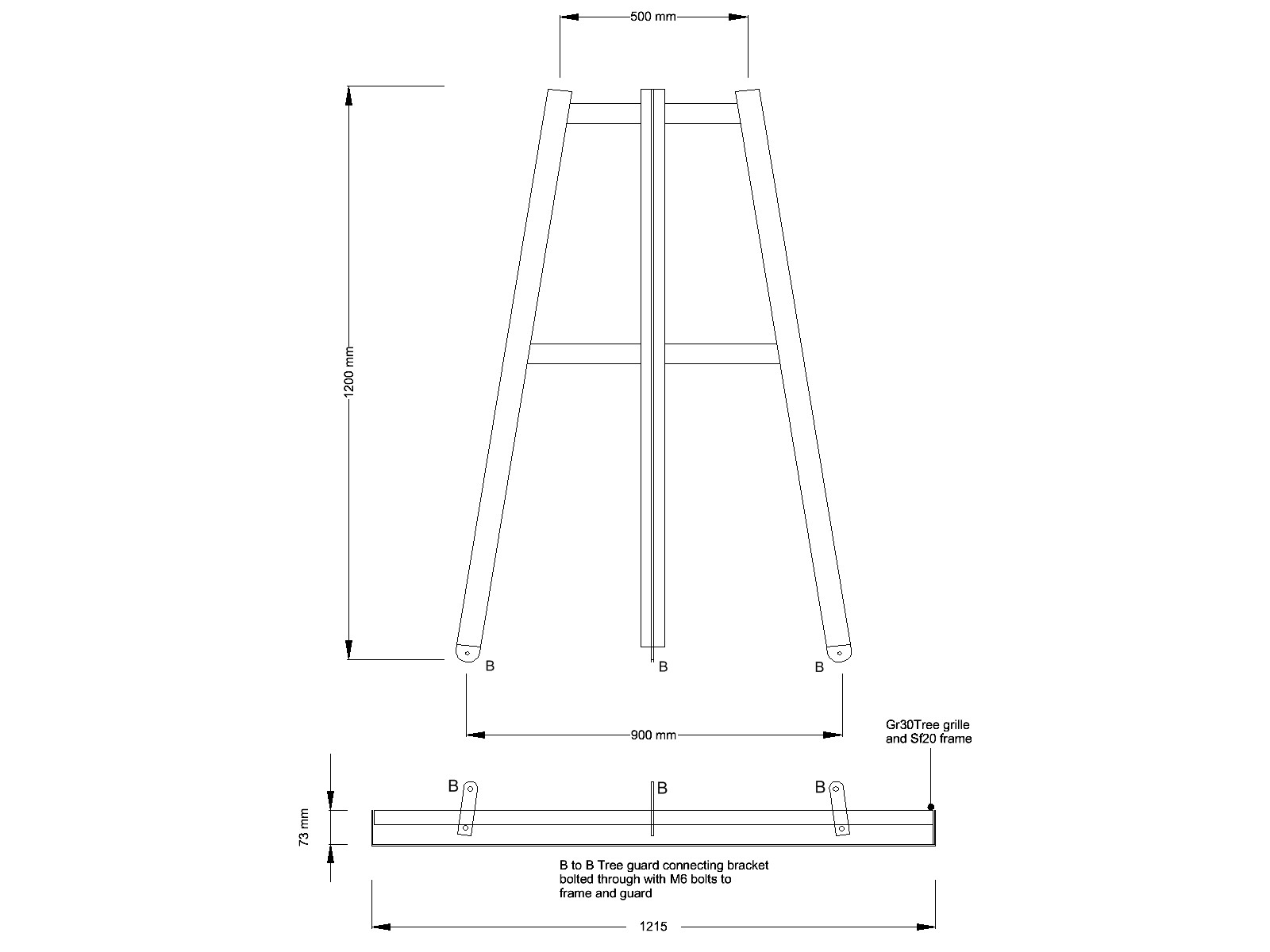

Above ground dimensions Diameter top 500mm x Diameter bottom 900mmx H1400mm
Guards are fabricated in two halves (to wrap around tree) that are connected and bolted to brackets attached to the SFWks Ground frame frame Sf20. Adjustment of brackets will bring the guard vertical.
Brackets on the top collar allow attachment of adjustable tree ties to support tree and prevent chafing.
316 grade S/S, Powder coated or electropolished. Use with Gr30 Tree grille or Resin Bound Gravel infill (with special retaining collar).
Download Tripod (timber) data sheet
All product design and images are Copyright Street Furniture Works Ltd. There may be changes of detail to the specification of the products from that illustrated.
Please download data sheet for full installation, operation and maintenance liability guidelines
FOUNDATION AND FIXINGS MUST BE TO OWN ENGINEERS FINAL SPECIFICATION AND APPROVAL
