Tb10 Banda (fixed)
If you are looking for a well proportioned bollard that is a little more chunky than the cheap pencil thin bollards that can be seen everywhere, the simply designed Banda bollard could be the perfect choice.
Please note that along with similarly specified tubular bollards it is not designed to withstand the impact of a vehicle without some degree of damage. It is not a ram-raid bollard but should be used as a guide or deterrent to access.
Stainless steel 304 grade, 2mm wall thickness with radially grained finish.
High quality 50mm wide vinyl banding (doesn't chip or fade and is replaceable) in a wide variety of colours; Red, white or yellow reflective banding; stainless steel reflective windows.
Weight & Above ground dimensions

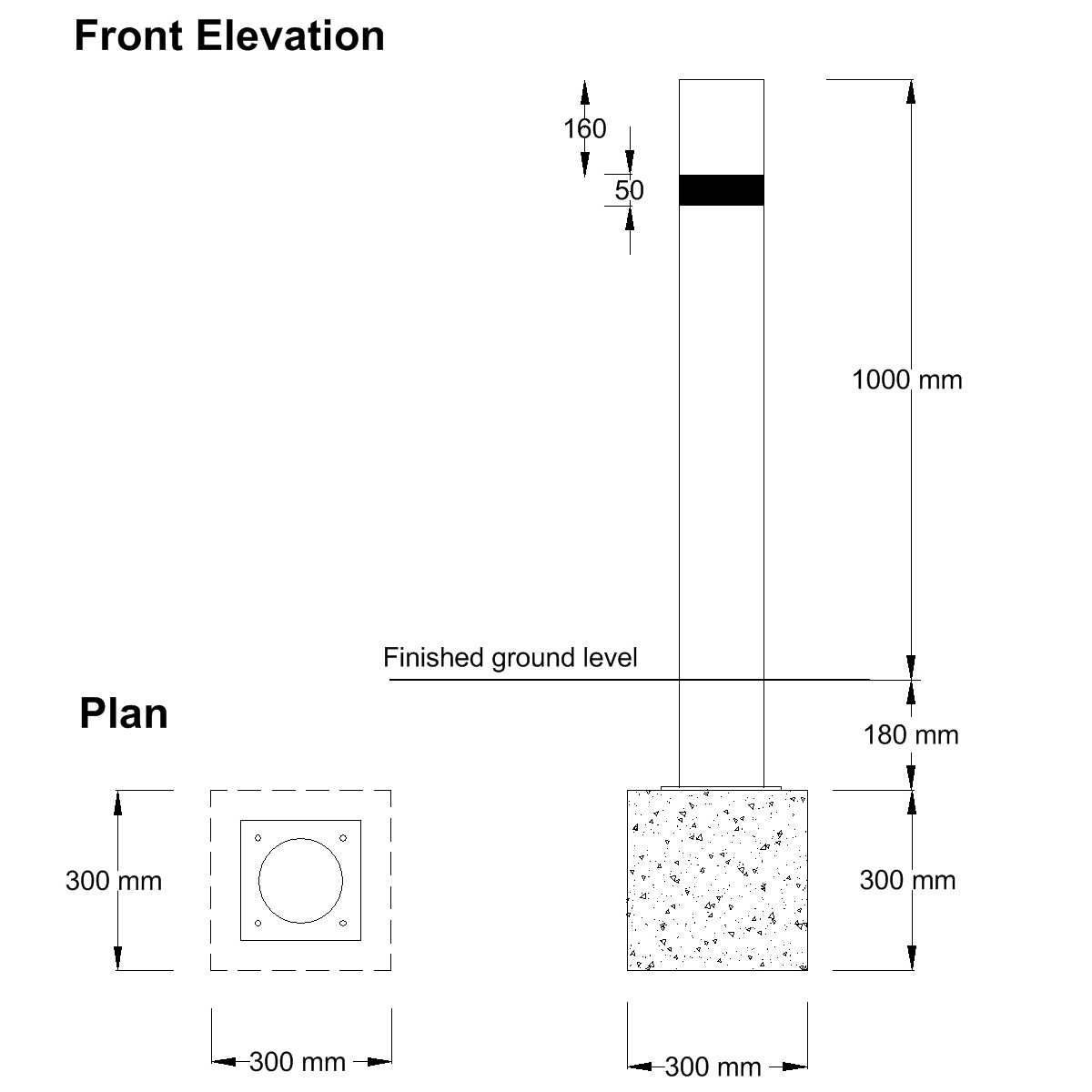

140mm diameter x H1000mm (above ground dimension).
Installation & Fixing
The fixed bollard is bolted onto a below ground concrete base (180mm below finished ground level) with 4No. M8 stainless steel resin bonded threaded anchor rods.
Foundations and fixings must be to Engineers final specification and approval.
316 grade stainless steel; electropolished finish; stainless steel ring cover plates to conceal grouting; demountable version available; visibility banding - High quality 50mm wide vinyl banding in most RAL colours. Special stainless steel windows for reflective tape.
Download Banda (fixed) data sheet
All product design and images are Copyright Street Furniture Works Ltd. There may be changes of detail to the specification of the products from that illustrated.
Please download data sheet for full installation, operation and maintenance liability guidelines
FOUNDATION AND FIXINGS MUST BE TO OWN ENGINEERS FINAL SPECIFICATION AND APPROVAL
